Point：582
Components type：87
PCB size： 268*165
Minimum package size of resistance capacitance sensing: 0201
Minimum device pin spacing：0.65
Welding mode：Reflow soldering for double side+ Wave soldering.
Manufacturing process: SMD processing + cleaning + anti-static packaging

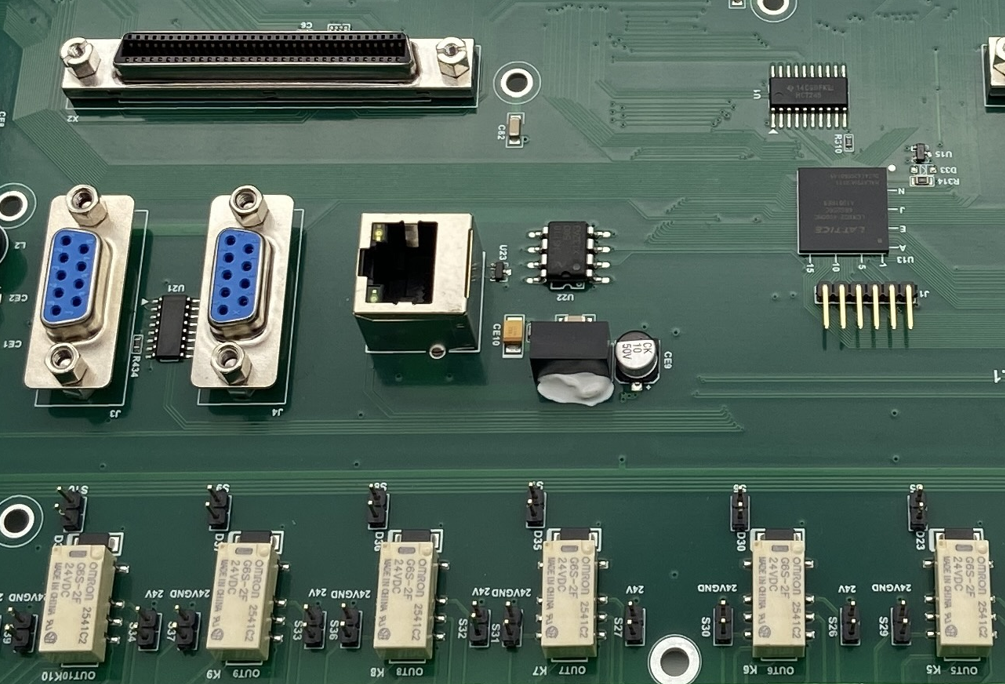

Shenzhen 1942 Techonoly Co.,LTD works for this project for 3 years , usually 800pcs for one order. The detailed inforamtion of this board as below.
The total number of front and back surface mount components is 582
The amount types are 87
The outer diameter of PCB is 268mm*165mm
The minimum package size of surface mounted components is 0201
The minimum pin spacing of surface mount components is 0.65mm
Components are soldered by double-sided reflow soldering machine
Though hole components soldered by wave soldering machine
Welcome send us your Gerber and BOM to get PCB and PCB assembly quoation
Soldering Details
Packaging
